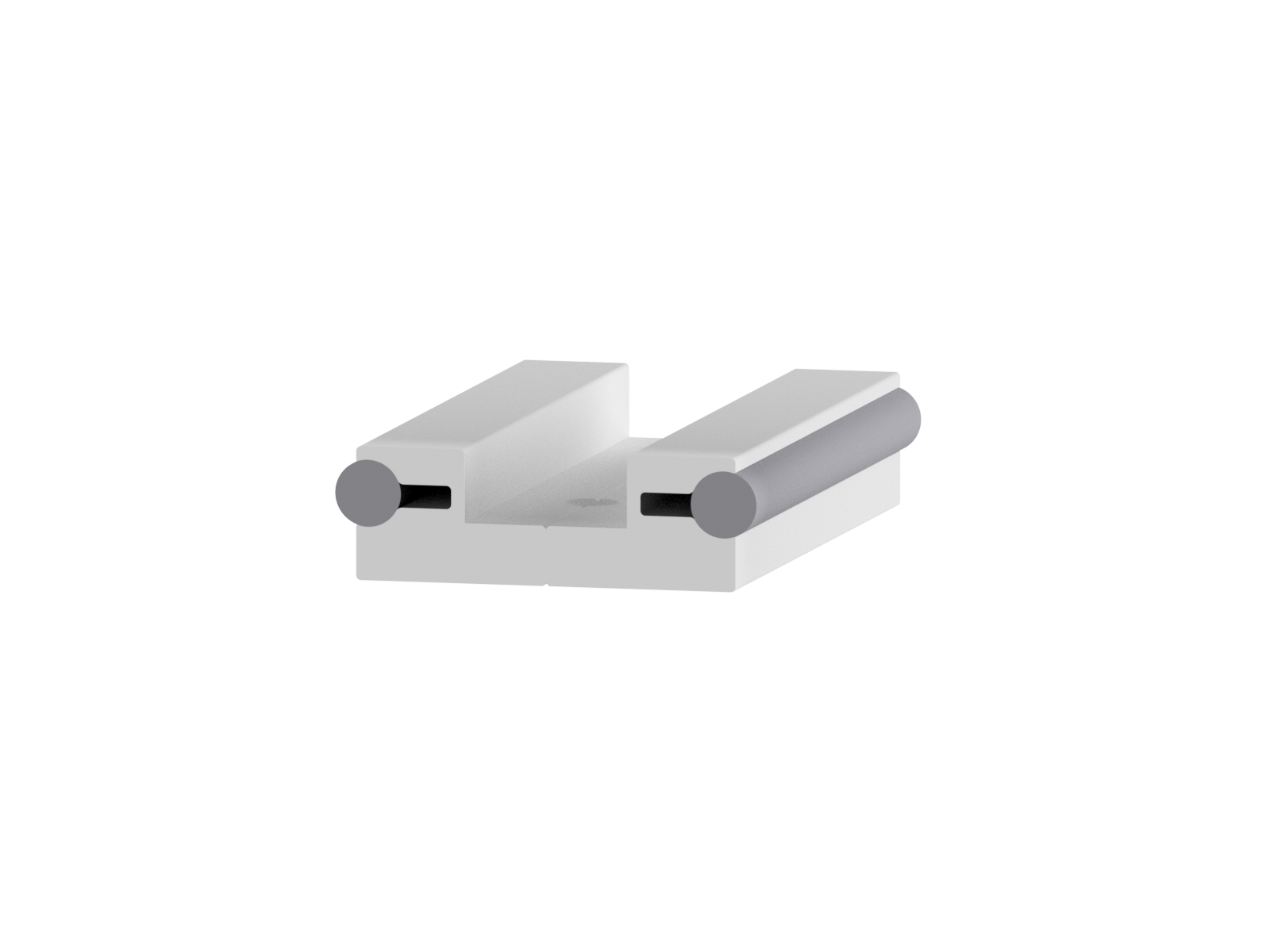

driven wheel linear systems - GD10
Description:

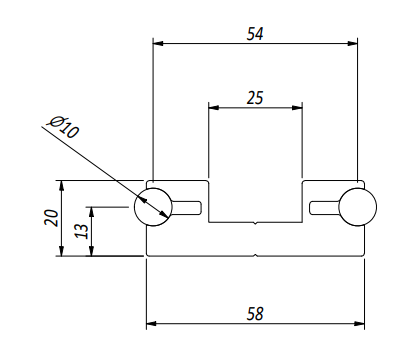

ENCUMBRANCE: y 64.00mm / z 20.00mm
Code:
BPRGD0000007
Serie:
Per Guide Lineari
Area:
879.63 mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
12,28 Wz/cm3 – 2.20 Wy/cm3
Moment of inertia:
33.08 Jz/cm4 – 2.85 Jy/cm4
Weight:
3.19 kg/m
