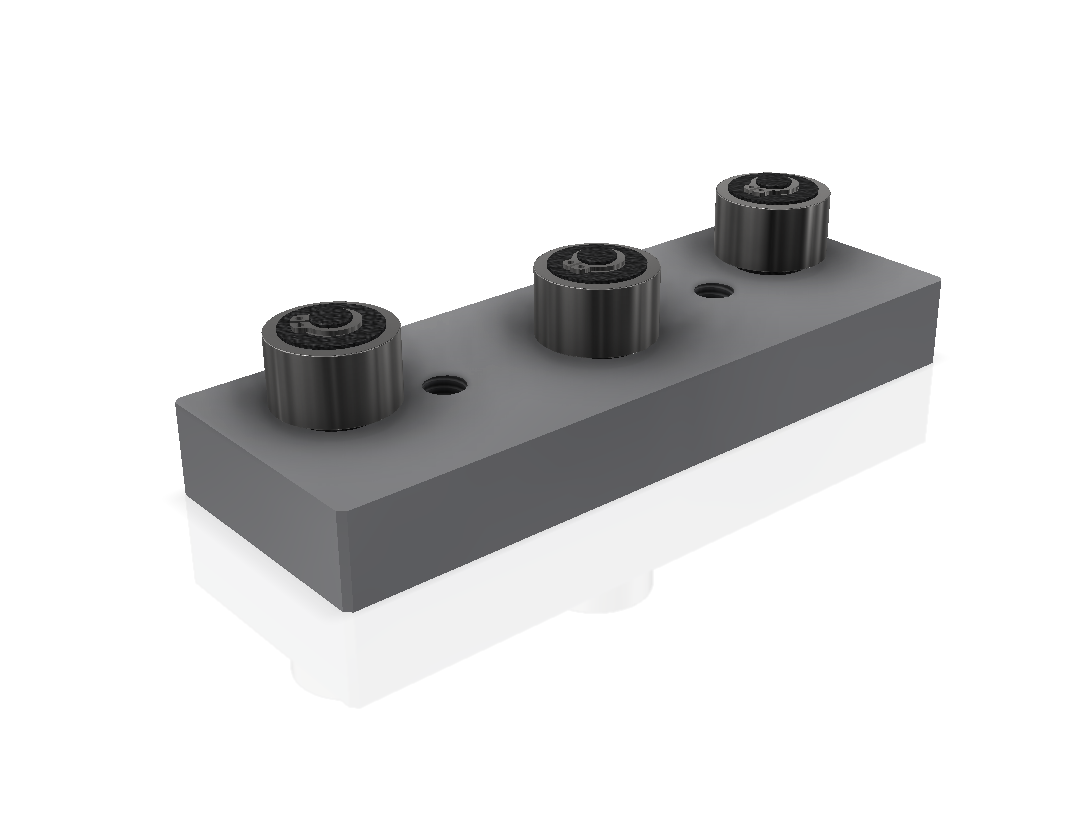

carriage for lienear guide - IL43c/3
Description:

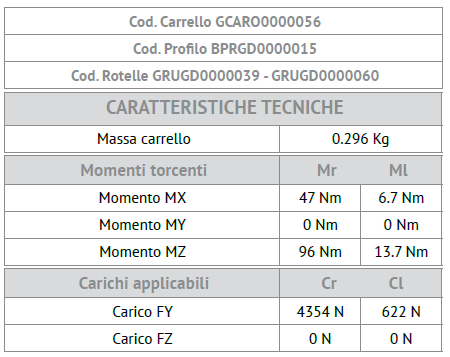

TORQUE
MX moment: mr 47Nm / ml 6.7Nm
moment MY: mr 0 Nm / ml 0 Nm
MZ moment: mr 96Nm / ml 13.7Nm
APPLICABLE LOADS
Load FY: cr 4354N / 622N
FX load: cr 0N / cl 0N
Code:
GCARO0000056
Serie:
Accessori Motion
Weight:
0.296Kg
