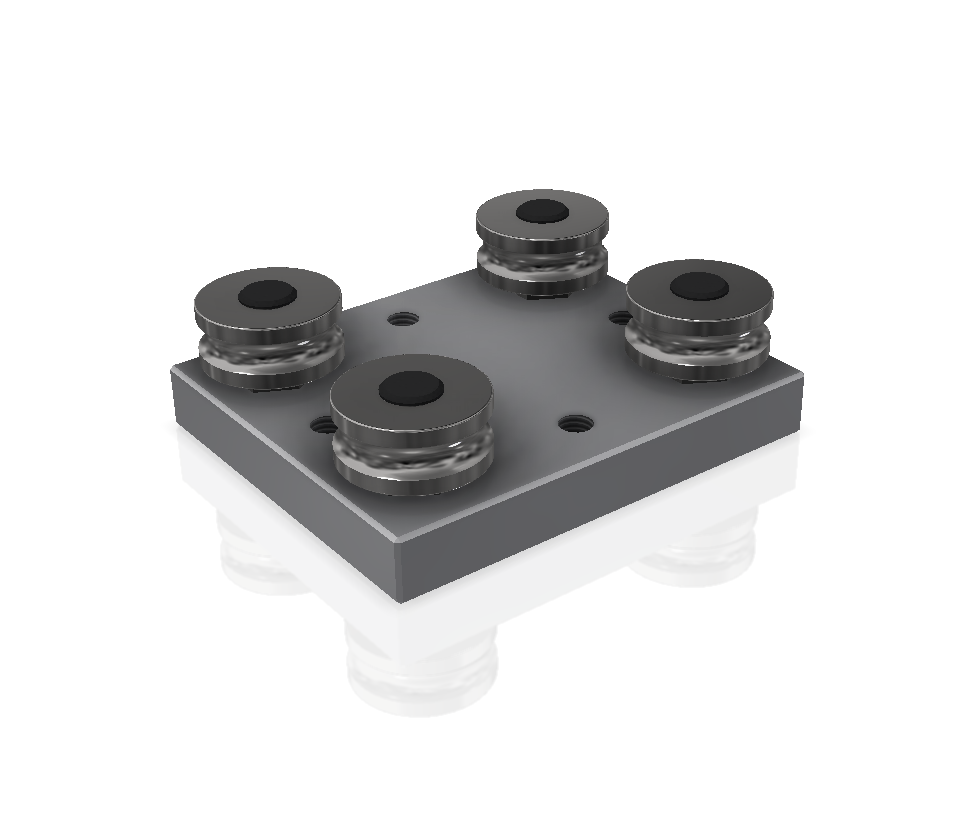

carriage for lienear guide -GDS102
Description:

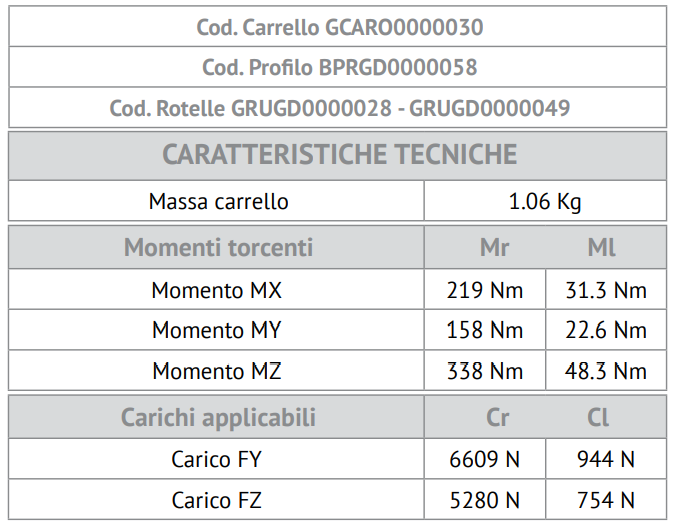

TORQUE moment MX: mr 219Nm / ml 31.3Nm moment MY:mr 158Nm/ml 22.6Nm MZ moment: mr 338Nm/ml 48.3NM APPLICABLE LOADS Load FY: cr 6609N / 944N FX load: cr 5280N / cl 754N
Code:
GCARO0000030
Serie:
Accessori Motion
Weight:
1.06Kg
