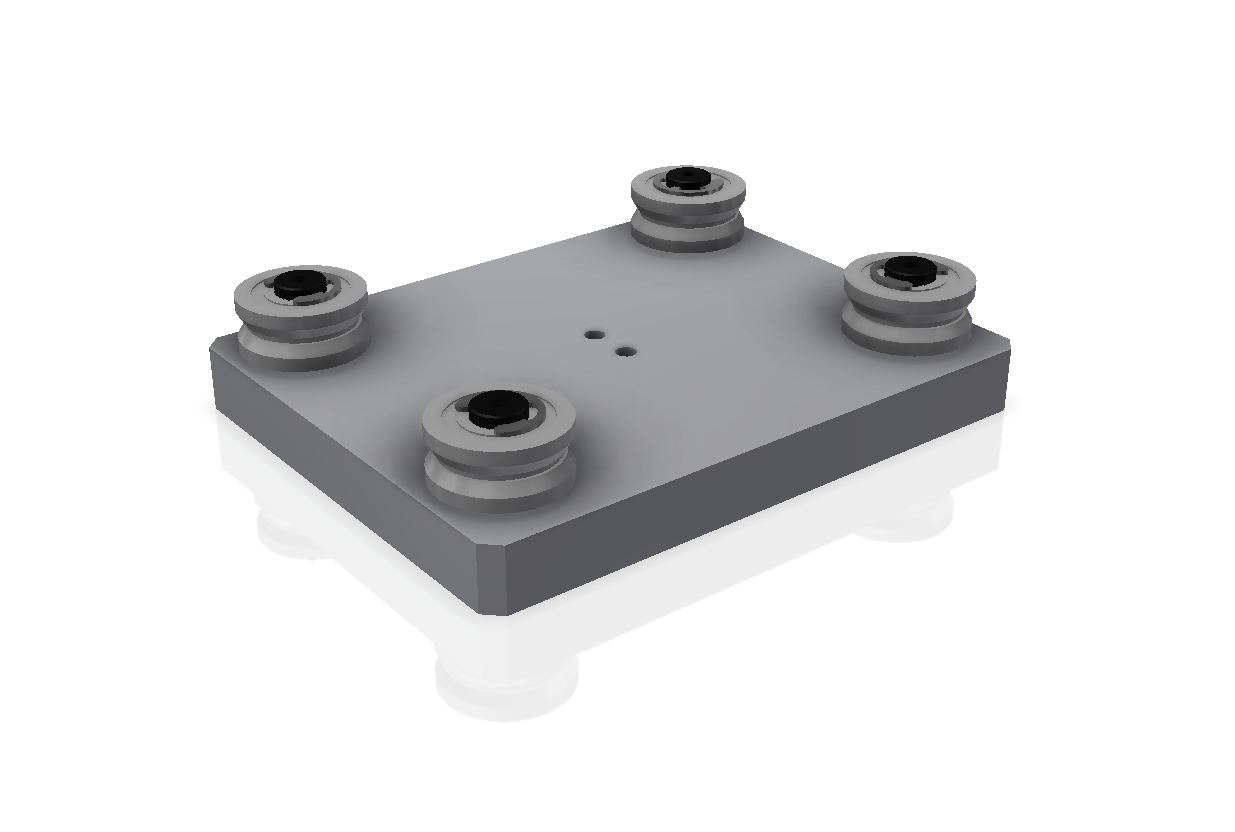

Carrello per guida lineare - GDX10C
Description:

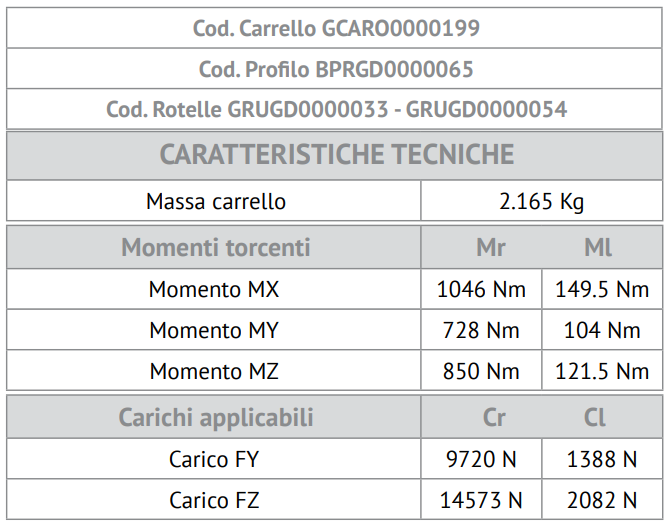

TORQUE
Mr Ml
moment MX: 1046Nm/ 149.5 Nm
moment MY: 728Nm/ 104 Nm
moment MZ: 850 Nm/ 121Nm
APPLICABLE LOADS
Cr Cl
load FY: 9720 N / 1388N
load FZ: 14573N / 2082N
Code:
GCARO0000199
Serie:
Accessori Motion
Weight:
2.165kg
