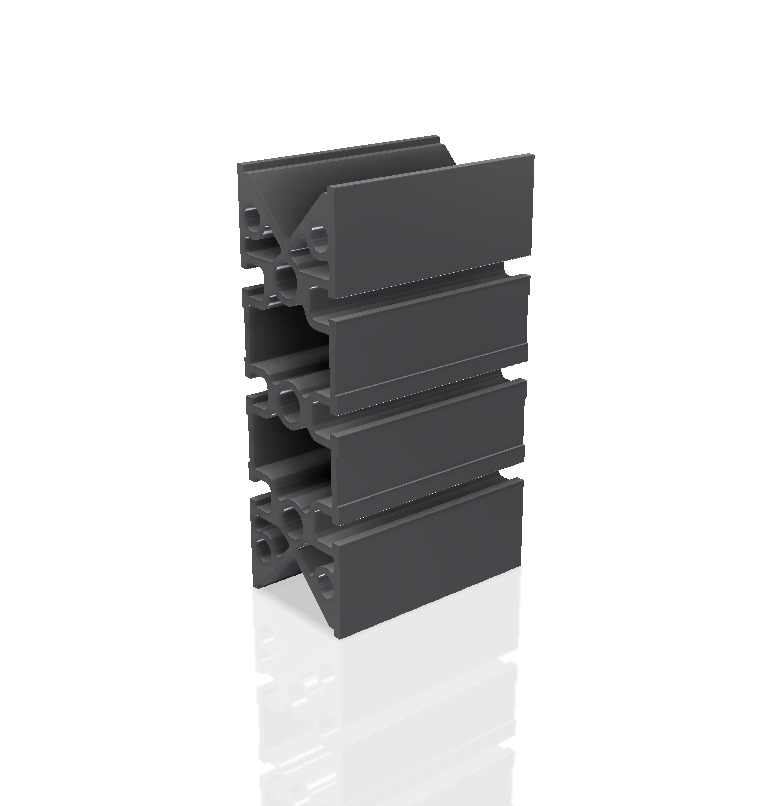

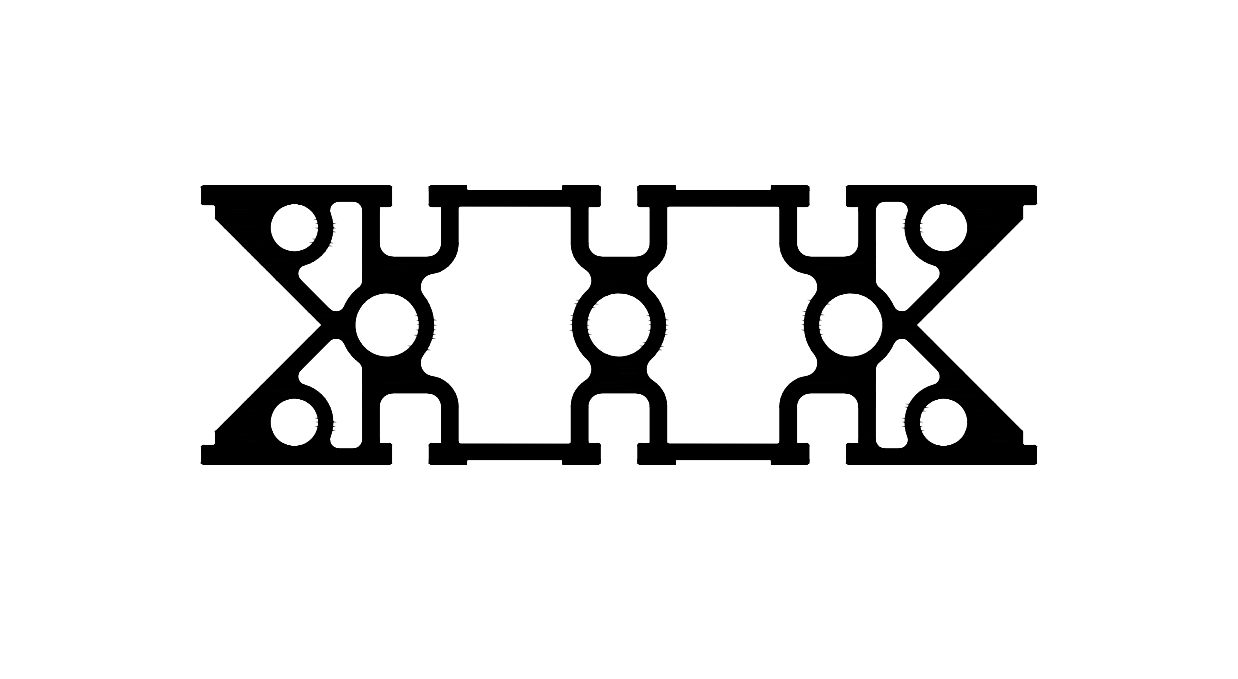

90 ° V guide profile 60x180
Description:

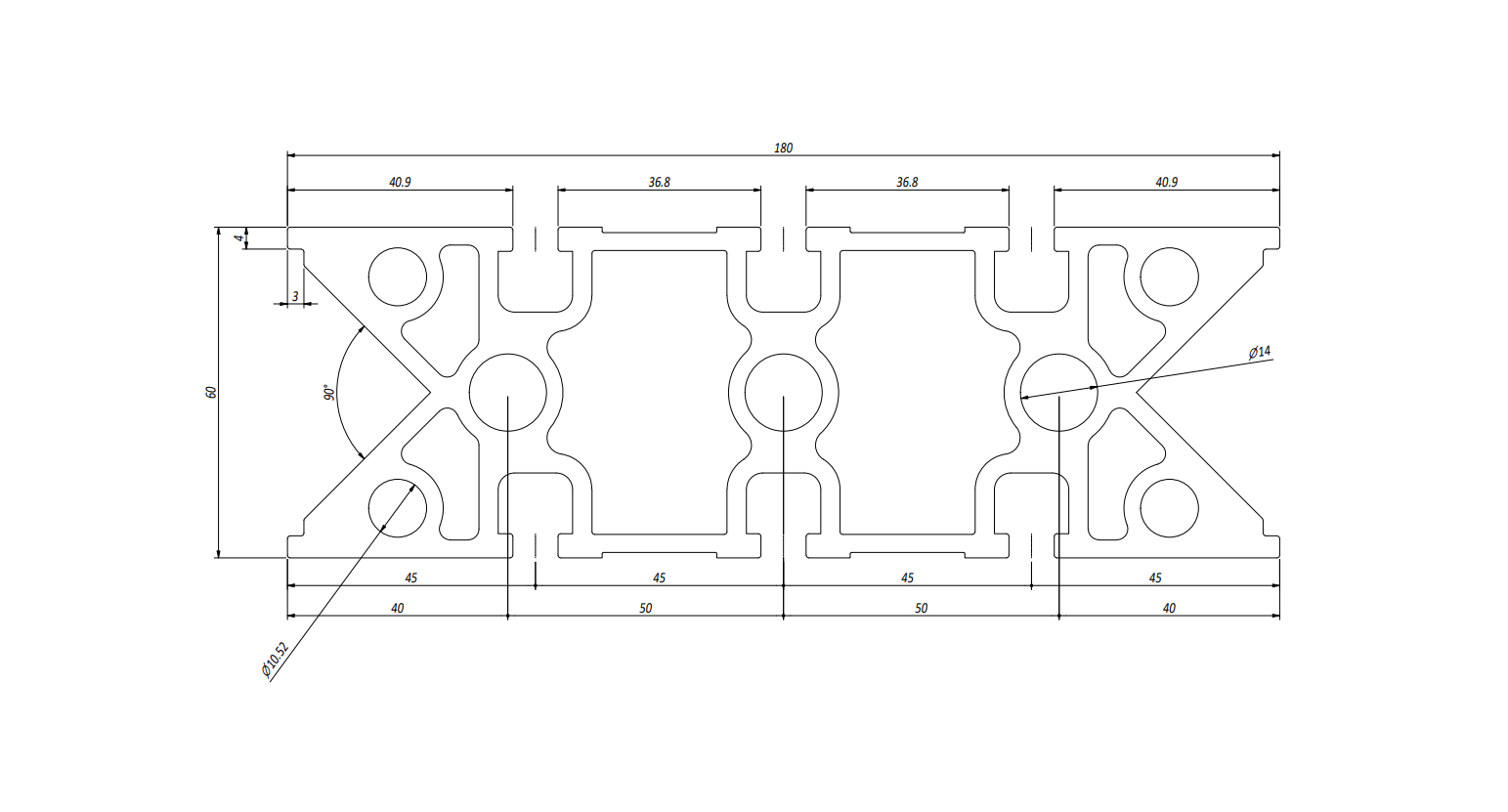

ENCUMBRANCE: y 60mm / z 180mm
Code:
BPRGD0000026
Serie:
Per Guide Lineari
Area:
3726.00 mm2
Bar length:
6040 mm
Materiale:
LEGA EN AW 6060
Modulo di resistenza:
111.70 Wz/cm3 – 42.00 Wy/cm3
Moment of inertia:
1005.10 Jz/cm4 – 125.70 Jy/cm4
Weight:
10.09 kg/ml
